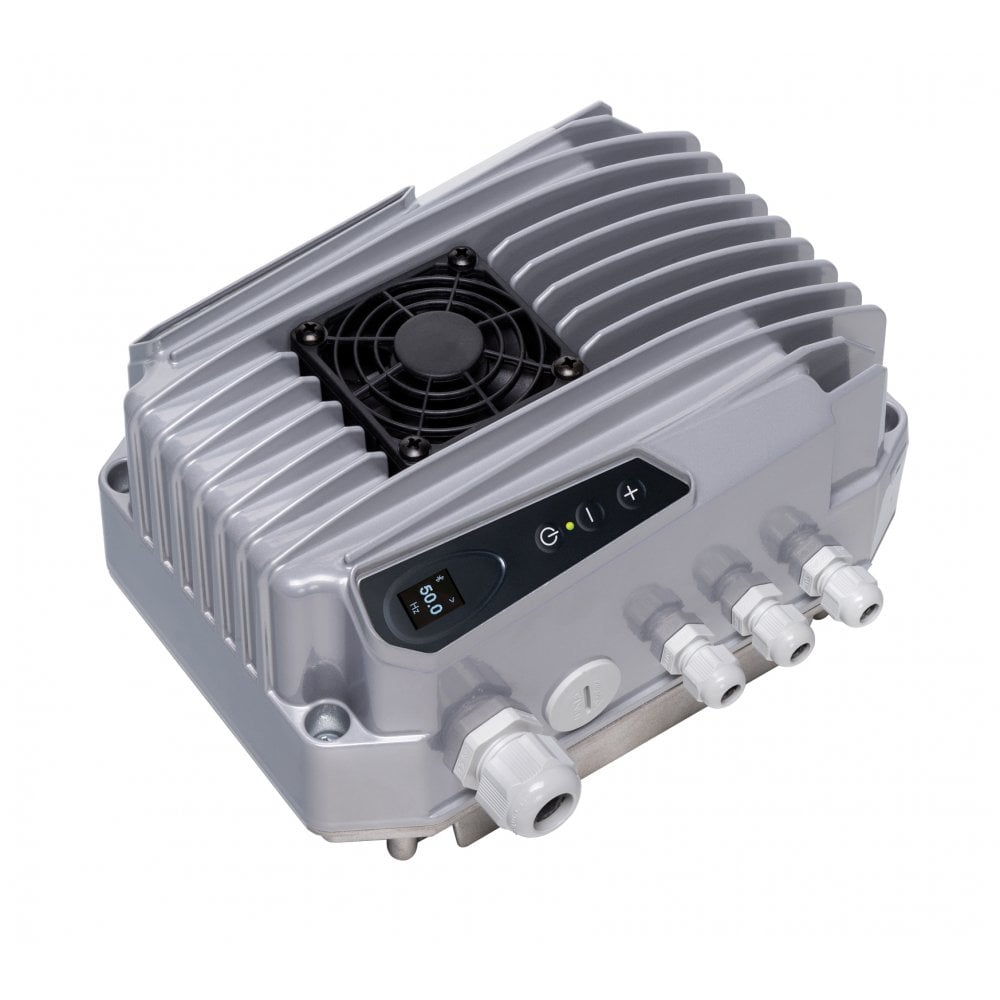

MIDA drives are a next generation of on-board motor inverters
Mounted directly to vertical or horizontal motor terminal plate, allowing direct control of the units via various inputs.
Usable in constant pressure, differential pressure, Fixed speed, Flow and temperature control.
Programmable via the onboard LCD display, or via the mobile app, Nastec NOW
Usable as a stand alone pump, or in COMBO mode for multiple units
MIDA 20# range operates on 230v single phase input, to provide an output of 3phase/230v.
Requiring a 3 phase motor with 230v connection.
Mida 40# range operates on 415v 3phase input and output.
Model | Vin ± 15% VAC |
Max V out VAC |
Max input Amps |
Max output Amps |
P2 motor power* kW |
MIDA 205 | 1 x 230 | 3 x Vin | 7.5 | 5 | 1.1 |
MIDA 207 | 1 x 230 | 3 x Vin | 11 | 7.5 | 1.5 |
MIDA 406 | 3 x 380-460 | 3 x Vin | 5.4 | 6 | 2.2 |
MIDA 409 | 3 x 380-460 | 3 x Vin | 8 | 9 | 4 |
*Typical motor power - Refer to motor rated current to confirm |
